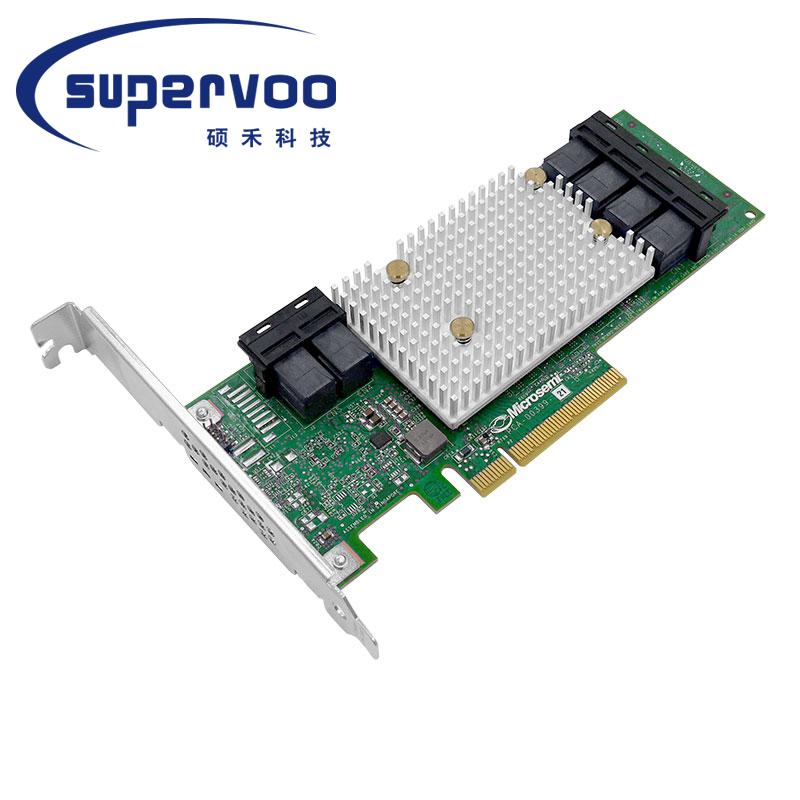

2301600-R SmartHBA 2100-24i 12 Gbps PCIe Gen3 24 internal ports SAS/SATA SmartHBA Adapter
- Product #：SmartHBA 2100-24i
- Ordering # : 2301600-R
- Product description: 2301600-R SmartHBA 2100-24i 12 Gbps PCIe Gen3 24 internal ports SAS/SATA SmartHBA Adapter
| Benefits | |
|
• Ideal for high-performing I/O solutions supporting SAS/SATA HDDs and SSDs requiring maximum connectivity • Offers basic RAID functionality for up to 32 devices supporting RAID levels 0, 1, 10, and 5 in conjunction with full HBA functionality for up to 238 devices • Broad operating system support through highly efficent, low-latency PQIdriver driver (fully open-source for Linux/FreeBSD) • Performance of up to 1.7M random read IOPS with extremely low-latency 4 KB I/Os |
|
| Data Transfer Rate | |
| 12 Gbps per port | |
| Bus System Interface | |
| 8-lane PCIe Gen3 | |
| Form Factor | |
| MD2 – Low Profile | |
| Connector Configuration | |
| Two internal mini SAS HD (SFF-8643) | |
| Package Contents | |
|
• SmartHBA 2100-8i adapter • Additional low profile vented bracket |
|
| Physical Size | |
| 2.535"H x 6.6"L (64mm x 167mm) | |
| Operating Temperature | |
| 0 °C to 55 °C with 200 LFM airflow. | |
