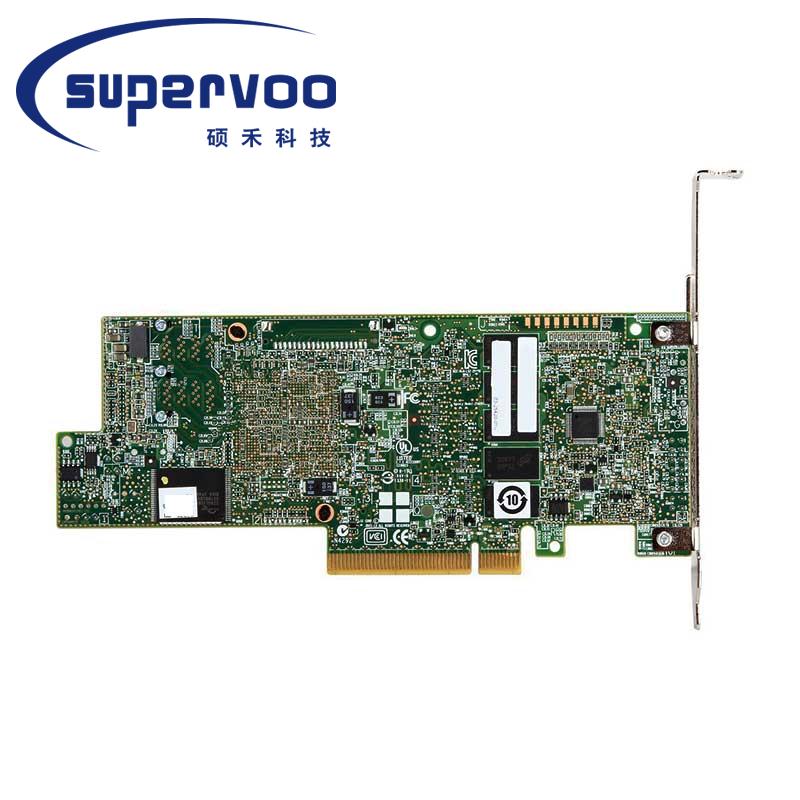

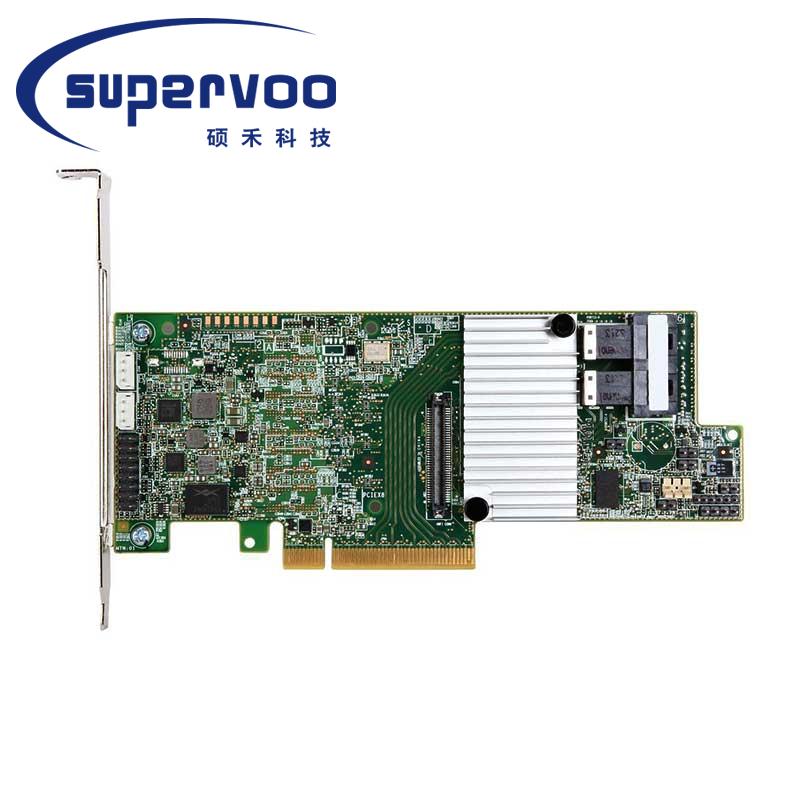

  • LSI 9361-8i LSI00417 8-Port Internal 12Gb/s PCI-Express RAID Controller (1G/2G Memory)
  • LSI 9361-8i LSI00417 8-Port Internal 12Gb/s PCI-Express RAID Controller (1G/2G Memory)
  • LSI 9361-8i LSI00417 8-Port Internal 12Gb/s PCI-Express RAID Controller (1G/2G Memory)
LSI 9361-8i LSI00417 8-Port Internal 12Gb/s PCI-Express RAID Controller (1G/2G Memory)LSI 9361-8i LSI00417 8-Port Internal 12Gb/s PCI-Express RAID Controller (1G/2G Memory)LSI 9361-8i LSI00417 8-Port Internal 12Gb/s PCI-Express RAID Controller (1G/2G Memory)

LSI 9361-8i LSI00417 8-Port Internal 12Gb/s PCI-Express RAID Controller (1G/2G Memory)

  • Product #:9361-8I
  • Ordering # : LSI00417
  • MPN : 05-25420-08 (1G)
  • MPN : 05-25420‐17 (2G)
  • Product description: LSI MEGARAID SAS 9361-8I 8-Port Internal 12Gb/s PCI-Express RAID Controller (1G/2G Memory)
  • INQUIRY
Specification Value
Lifecycle Active
Distrib. Inventory No
RAID-on-Chip Controller LSISAS3108 dual core RAID on Chip (ROC)

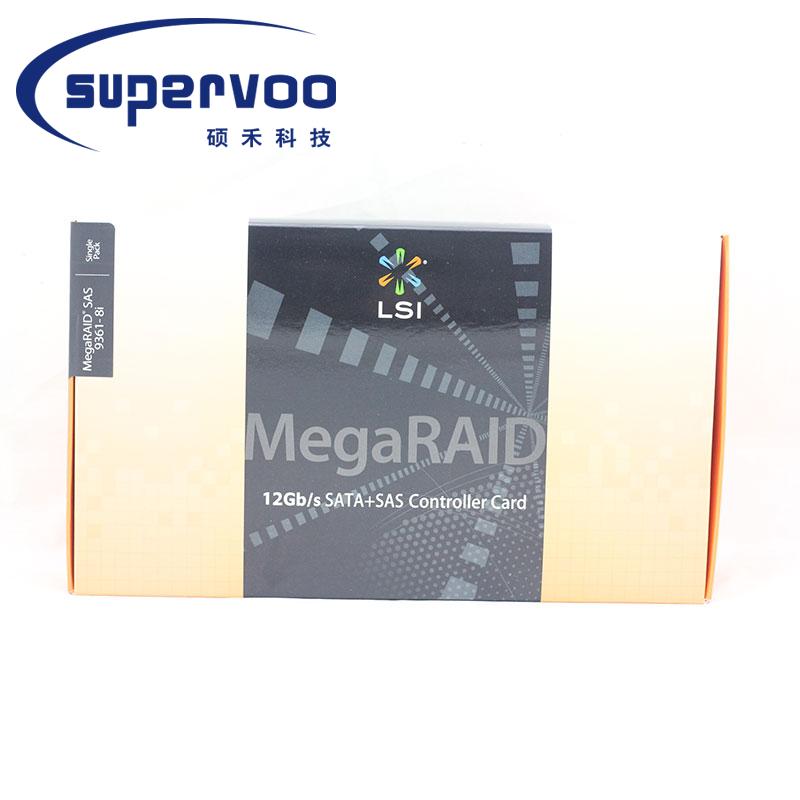

What's in the box MegaRAID SAS 9361-8i, QIG, LP bracket
Generation 12 Gb/s
RAID Management Software LSA (LSI Storage Authority), MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure)
Cache Protection Optional CacheVault Flash Module (LSICVM02) Includes CVFM04, CVPM02, mounting clip, and cable
Physical Dimensions MD2 Low profile (6.6" x 2.536")
Host Bus Type x8 lane PCI Express® 3.0
Cache Memory 1GB or 2GB 1866MHz DDRIII SDRAM
Internal Ports 8
Data Transfer Rates Up to 12Gb/s per port
Devices Supported Up to 240 SATA and/or SAS devices
Internal Connectors 2 HD Mini-SAS SFF8643 (Horizontal mount)
MTBF 1,343,187 hours
Operating Temperature Maximum ambient: Controller Card with included CacheVault module: 55°C
Operating Voltage (V) +12V, +3.3V
OS Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems
Regulatory Certifications Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), Japan (V-3/02.04), Safety: EN60950
Warranty 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
