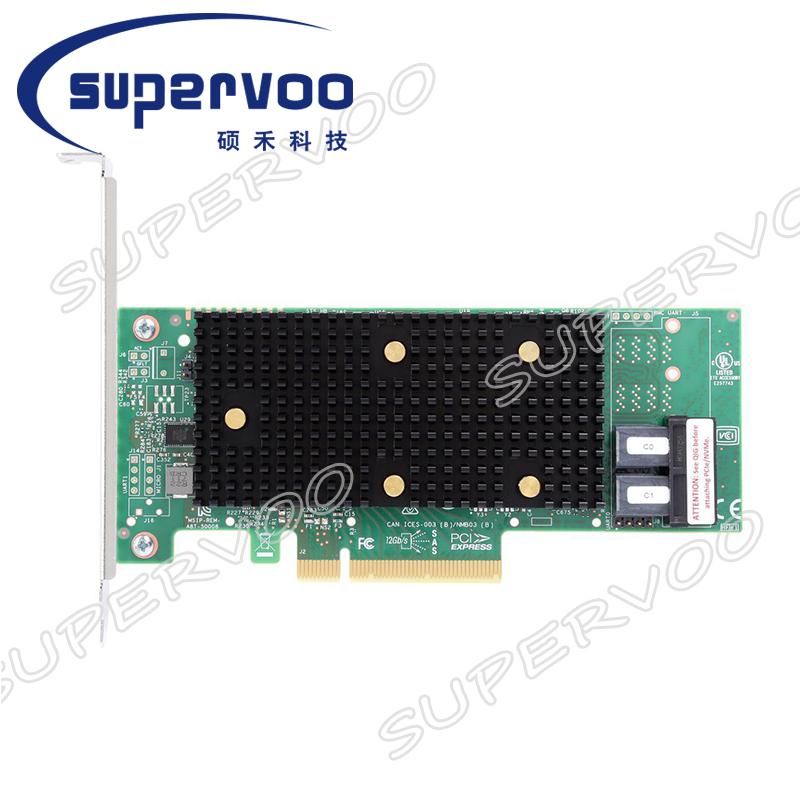

  • Broadcom 9400-8i Single 05-50008-01 8-Int Ports 12Gb/s SAS/SATA/NVMe Tri-Mode PCle3.1 HBA
Broadcom 9400-8i Single 05-50008-01 8-Int Ports 12Gb/s SAS/SATA/NVMe Tri-Mode PCle3.1 HBA

Broadcom 9400-8i Single 05-50008-01 8-Int Ports 12Gb/s SAS/SATA/NVMe Tri-Mode PCle3.1 HBA

  • 9400-8i
  • 05-50008-01
  • Broadcom
  • HBA
  • Product description: 9400-8i Single 05-50008-01 8-Int Ports 12Gb/s SAS/SATA/NVMe Tri-Mode PCle3.1 HBA
  • INQUIRY
Specifications
Host Bus Type x8 lane PCI Express® 3.1
Physical Dimensions Low profile 6.127” x 2.712”
Devices Supported SAS/SATA: 1024; NVMe: 24
Internal Ports 8
External Connectors 2 HD Mini-SAS SFF8643 (Horizontal mount)
Operating Temperature 10° to 55° C
Operating Voltage (V) +12V +/-8%, 3.3V +/-9%
OS Support Microsoft Windows, Linux, VMware.
PCI Power Typical: 10.05W
Cable Support Passive Copper
I/O Controller SAS3408
MTBF > 4,500,000 hours at 40° C
Operating Humidity 20% to 80% Non-condensing
Brackets Full height and low profile
Regulatory Certifications Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Warranty 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
Data Transfer Rates 12 Gb/s SAS-3 and 8 GT/s PCIe Gen 3 (NVMe) Compliant
