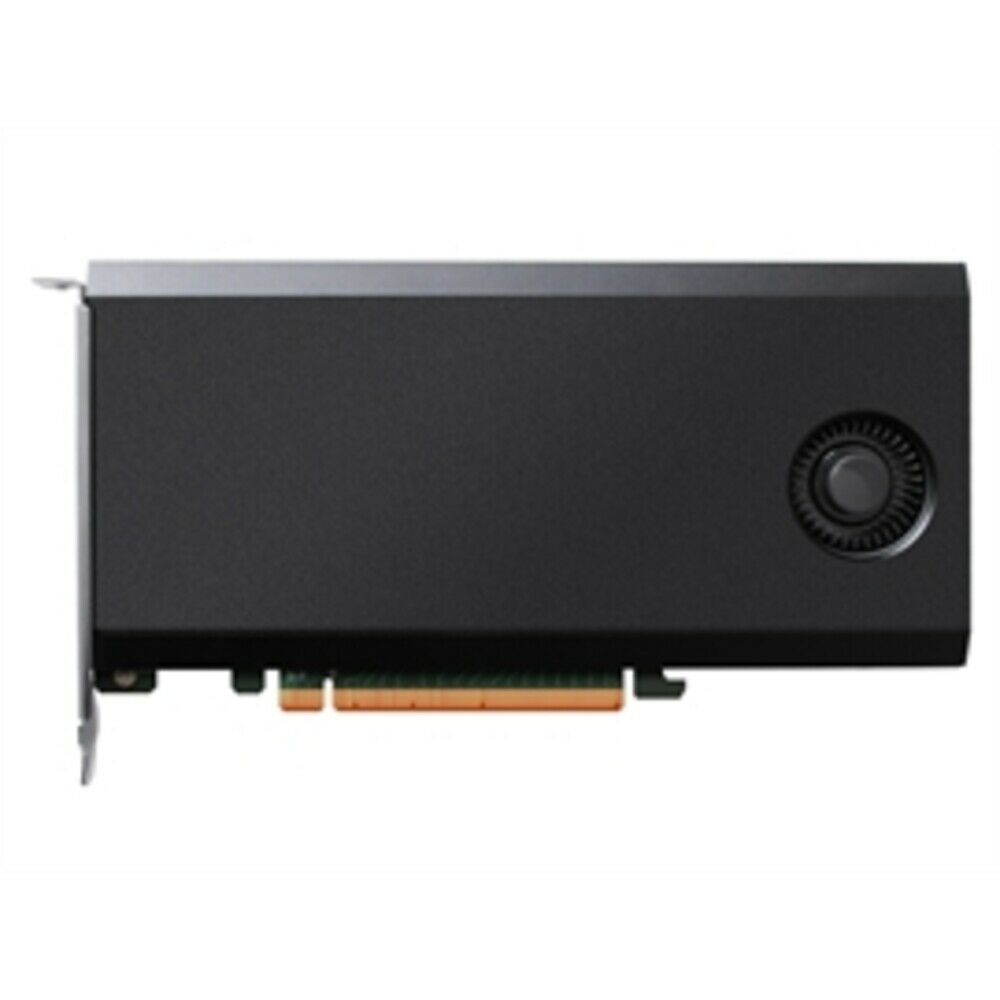

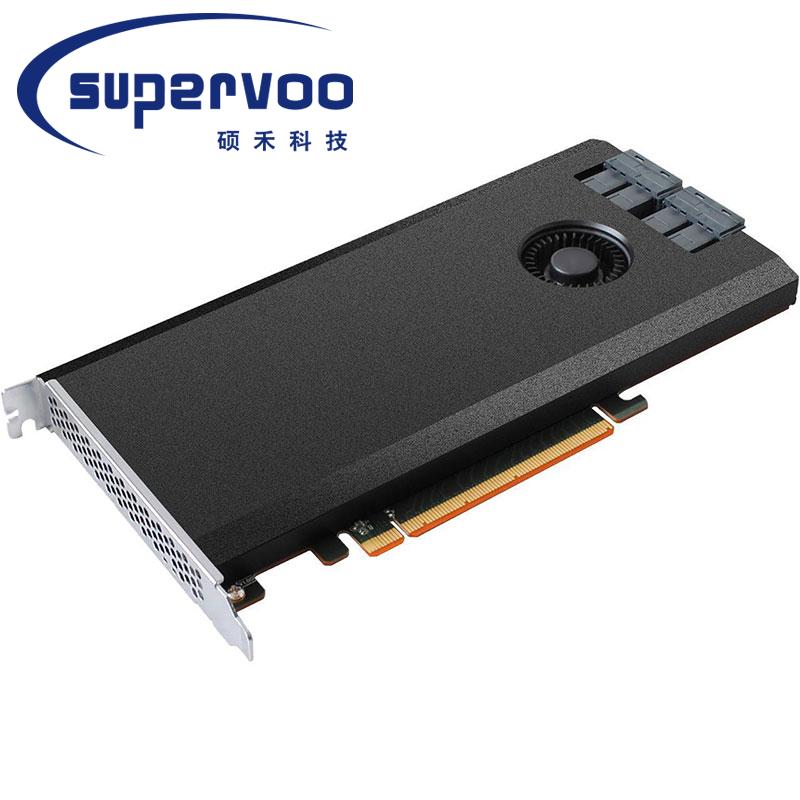

SSD7110 NVMe RAID Controller Hybrid Connectivity - M.2 + SAS/SATA Ports All-in-One RAID Controller
- Product description: SSD7110 NVMe RAID Controller Hybrid Connectivity - M.2 + SAS/SATA Ports All-in-One RAID Controller
Specification:
| Bus Interface | PCI-Express 3.0 x16 |
| Number of Channel / Port | 3* 2280 M.2 NVMe port (Dedicated PCIe 3.0 x4 per port) |
| Data Transfer Rates | 8GT per lane / 8Gbps per lane |
| Number of Devices | 3x M.2 NVMe SSD |
| 16x SAS/SATA Drive | |
| Form Factor | Full-Height |
| Dimensions | 5.97" x 2.68" x 0.06" |
| Weight | 0.77 lbs. |
| Operating System Support | Windows 10, Windows Server 2012 R2 or later |
| Linux Kernel 3.3 or later | |
| macOS 10.13 or later | |
| Cooling Fan | Aluminum casing with single 50x50mm fan blower |
| RAID Mode Support | Single, RAID 0, 1, 5* (For Mac support, please contact Sales) |
| TRIM RAID Support | Windows: Single, RAID 0, 1 |
| Linux: Single, RAID 0, 1 | |
| Storage Mode - NVMe | Bootable & Data RAID |
| RAID Management Suites | Browser-Based management tool |
| CLI (Command Line Interface - scriptable configuration tool) | |
| API package | |
| SMTP Email Alert Notification | Yes |
| Storage Health Inspector | Yes |
| NVMe SMART status | Yes |
| Global Hot Spare Disk support | Yes |
| Automatic and configurable RAID Rebuilding Priority | Yes |
| Auto resume incomplete rebuilding after reboot | Yes |
| Single-RAID or Multi-RAID Arrays per Controller | Yes |
| Cross-Sync RAID Solution Across Controllers | Yes |
| SAS Port | 16 internal SAS 12Gb/SATA 6Gb Ports |
| (4* SFF-8643 Connector) | |
| RAID Level Support | 0, 1, 5, 6, 1/0**, 50 and JBOD / Non-RAID Mode |
| SAS Enclosure Management Interface | SGPIO |
| Storage Health Inspector (SHI) | Yes |
| Redundant RAID Configurations | Yes |
| Multiple RAID Partitions supported | Up to 4 |
| Storage Configurations | Direct Attached |
| Online Array Roaming | Yes |
| Online RAID Level Migration (ORLM) | Yes |
| Online Capacity Expansion (OCE) | Yes |
| RAID Quick Initialization for fast array setup | Yes |
| Drive hot-plug support | Yes |
| Global Hot Spare Disk support | Yes |
| Automatic and configurable RAID Rebuilding Priority | Yes |
| Auto resume incomplete Rebuilding after power on or reboot system | Yes |
| Disk Format compatible | 512, 512e, 4Kn |
| Larger than 2 TB Drive and RAID Array support | Yes |
| Spin down Massive Arrays of Idle Disks support | Yes |
| Native Command Queuing | Yes |
| SAS TCQ | Yes |
| Disk media scan and repair | Yes |
| Device Error Recovery support | Yes |
| Automatic remap and fix drive bad block for RAID array | Redundant RAID Levels (RAID 1, 5, 6, 1/0, 50) |
| Staggered Drive Spin Up | Yes (Spin up 4 disk every 2s) |
| Write Back and Write Through | Yes |
