Specififactions

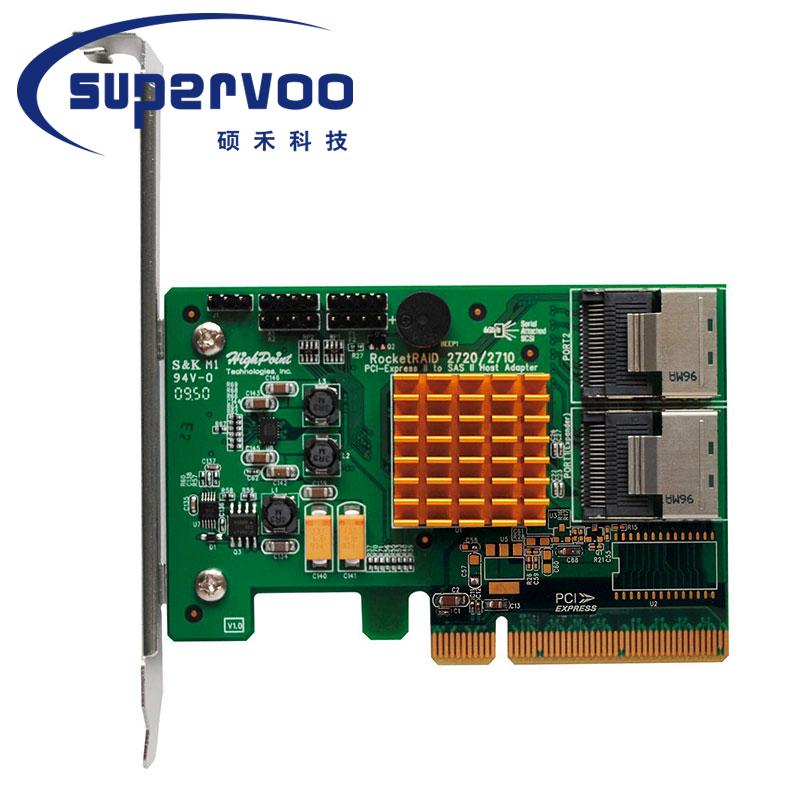

Port Type | 2x SFF-8087 (Mini-SAS) |
Number of Channels / Ports |
8x SAS /SATA Hard Drive / SSD Note: Desktop HDD's are not supported. |
Bus Interface | PCIe 2.0 x8 |
Form Factor | Low Profile |
4.72" x 2.68" x 0.06" | |
RAID Mode | 0, 1, 5, 6, 10, 50 and JBOD |
Note: | |
RAID 6 is not supported on macOS | |
Bootable RAID 6 is not supported | |
Operating System | Window Server 2008 and Window 7 and later |
Linux | |
macOS 10.6 and later | |
Driver embedded into macOS 10.8 and later | |
Flash ROM for Upgradeable BIOS | Yes |
Storage Health Inspector | Yes |
Redundant RAID Configurations | Yes |
Bootable RAID Array | Yes |
EFI for Mac Platform | Yes |
Multiple RAID Partitions supported | Suport up to 4 RAID partition per disk |
Storage Configurations Support Details | Direct Attached |
Multiple RAID Adapters supported | Suport up to 4 RAID controllers per one system |
Online Array Roaming | Yes |
Online RAID Level Migration (ORLM) | Yes |
Online Capacity Expansion (OCE) | Yes |
RAID Initialization Background/Foreground/Quick | Yes |
Global Hot Spare Disk support | Yes |
Automatic and configurable RAID Rebuilding Priority | Yes |
Disk Format compatible: 512, 512e, 4Kn | Yes |
Larger than 2 TB Drive and RAID Array support | Yes |
Spin down Massive Arrays of Idle Disks support | Yes |
Native Command Queuing | Yes |
Staggered Drive Spin Up | Yes |
Write Back and Write Through | Yes |
