  • BROADCOM 9400-8e 05-50013-01 SATA/SA 8-Port PCIe 3.1 x8 HBA
  • BROADCOM 9400-8e 05-50013-01 SATA/SA 8-Port PCIe 3.1 x8 HBA
  • BROADCOM 9400-8e 05-50013-01 SATA/SA 8-Port PCIe 3.1 x8 HBA
BROADCOM 9400-8e 05-50013-01 SATA/SA 8-Port PCIe 3.1 x8 HBABROADCOM 9400-8e 05-50013-01 SATA/SA 8-Port PCIe 3.1 x8 HBABROADCOM 9400-8e 05-50013-01 SATA/SA 8-Port PCIe 3.1 x8 HBA

BROADCOM 9400-8e 05-50013-01 SATA/SA 8-Port PCIe 3.1 x8 HBA

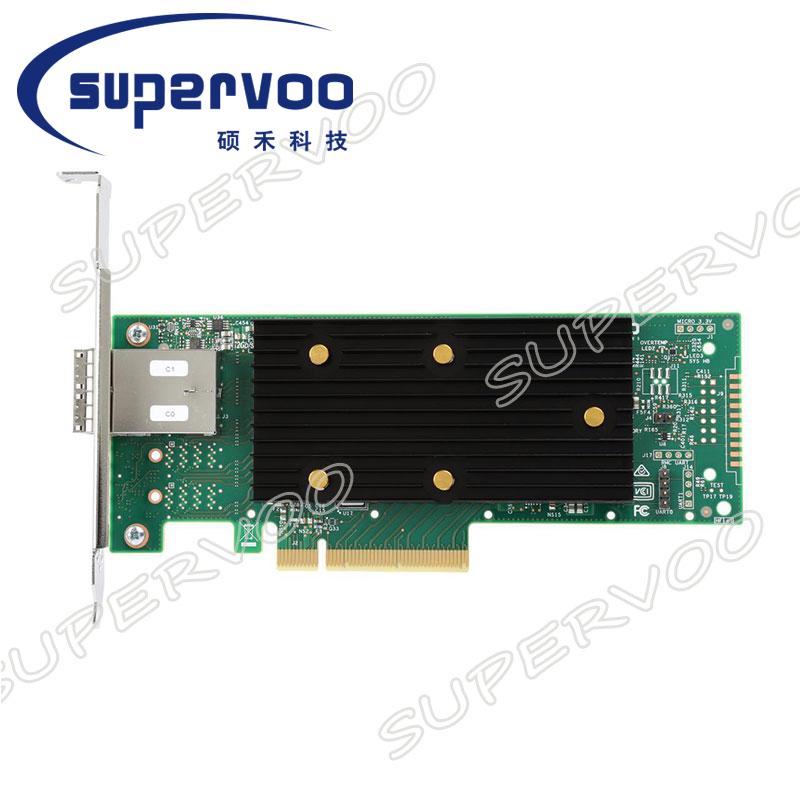

  • Product description: BROADCOM 9400-8e 05-50013-01 SATA/SA 8-Port PCIe 3.1 x8 HBA
  • INQUIRY
Specifications
Host Bus Type x8 lane PCI Express® 3.1
Physical Dimensions 6.600" x 2.712"
Devices Supported SAS/SATA: 1024
External Connectors 2 Mini-SAS HD SFF8644
Operating Temperature 0°C to 55°C
OS Support Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
PCI Power Typical: 9.48W
Cable Support Passive Copper, Active copper, Active Optical
I/O Controller SAS3408
MTBF >4,500,000 hours at 40° C
Operating Humidity 5% to 90% Non-condensing
Brackets Full height and low profile
Data Transfer Rates 12Gb/s SAS-3 Compliant
Management Software LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
Regulatory Certifications Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Warranty 3 years
