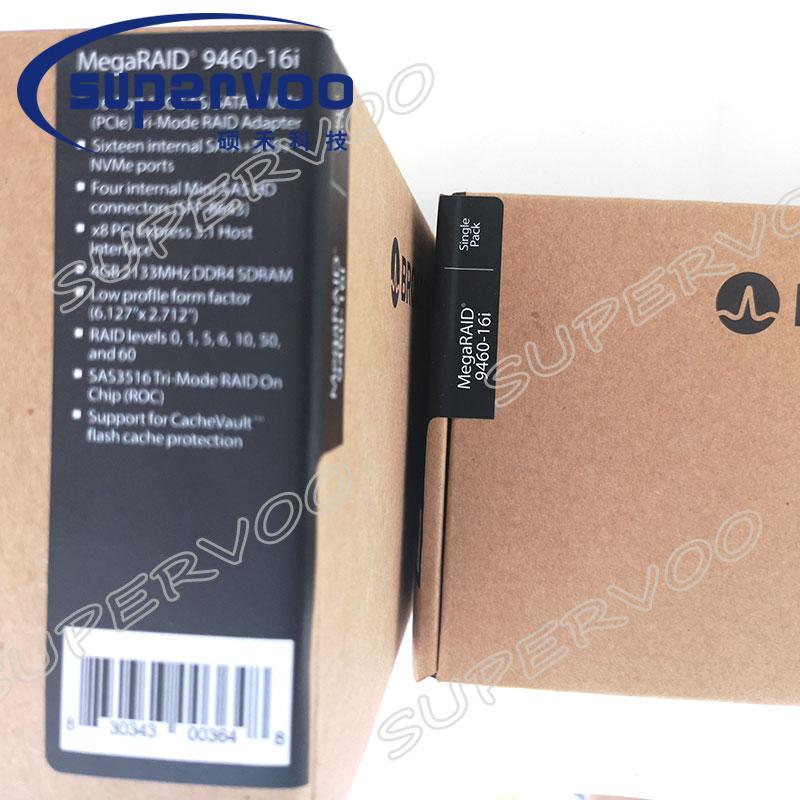

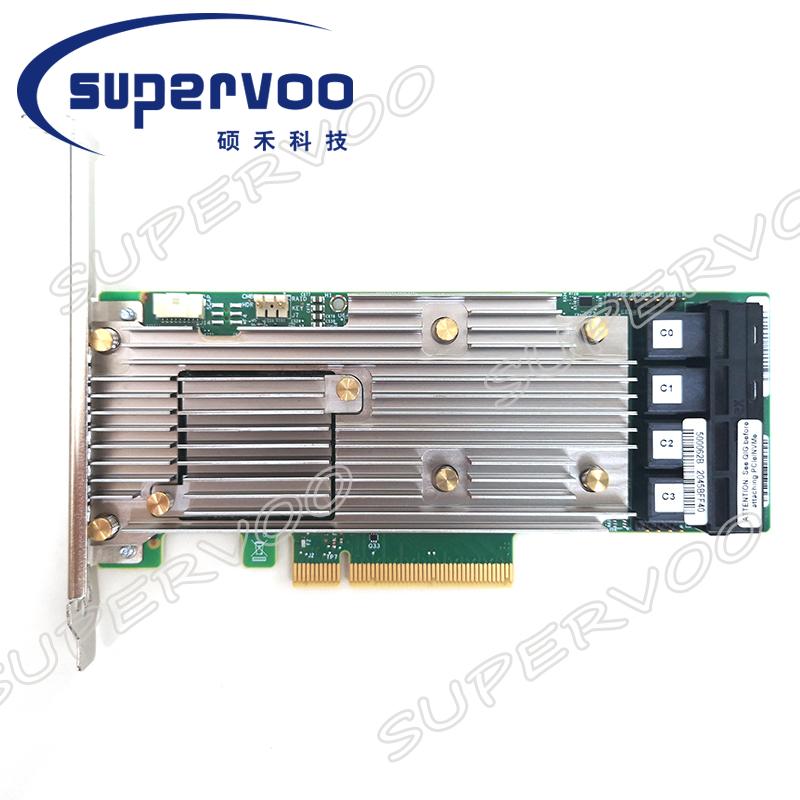

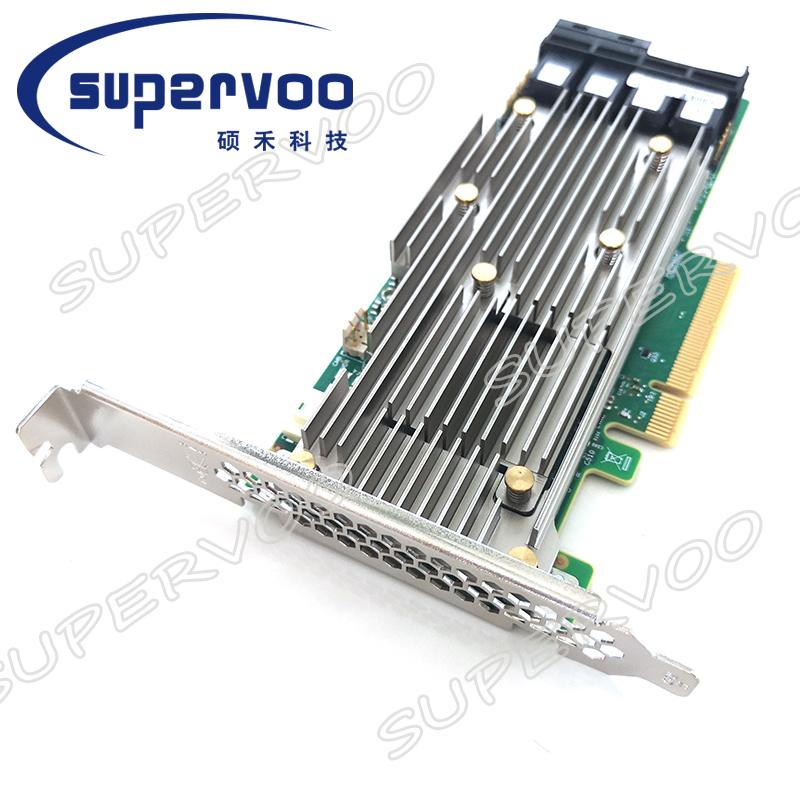

9460-16i SGL 05-50011-00 16-Int Ports 12Gb/s PCle3.1 4GB SFF-8643 LP SAS/SATA/NVMe Tri-Mode Controller
- Product description: 9460-16i SGL 05-50011-00 16-Int Ports 12Gb/s PCle3.1 4GB SFF-8643 LP SAS/SATA/NVMe Tri-Mode Controller
Specifications
| I/O Processor / SAS Controller | SAS3516 dual-core RAID-on-Chip (ROC) |
| Cache Protection | CacheVault CVPM05 |
| Management Software | LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
| Physical Dimensions | Low profile 6.127” x 2.712” |
| Host Bus Type | x8 lane PCI Express® 3.1 |
| Internal Ports | 16 |
| Cache Memory | 4GB 2133 MHz DDR4 SDRAM |
| Devices Supported | SAS/SATA: 240, NVMe: 24 |
| Internal Connectors | 4 Mini-SAS HD x4 SFF-8643 |
| Operating Temperature | 10° to 55° C |
| Operating Voltage (V) | +12V +/-8%, 3.3V +/-9% |
| OS | Microsoft Windows. Contact Oracle support for Oracle Solaris driver or software support. See www.broadcom.com/support/down-load-serach for details on versions. |
| Regulatory Certifications | Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
| Warranty | 3 years |
