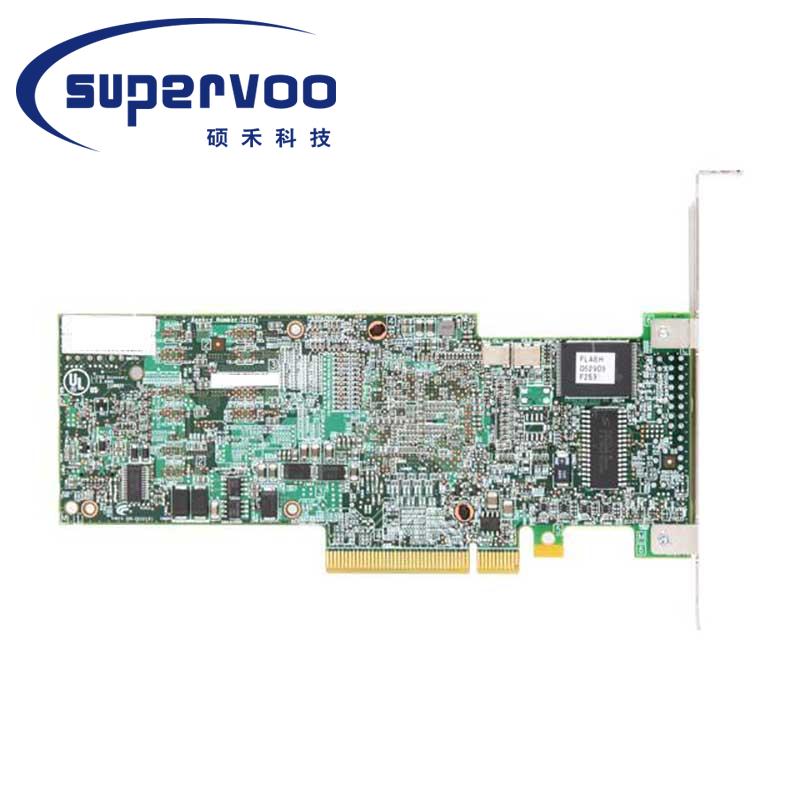

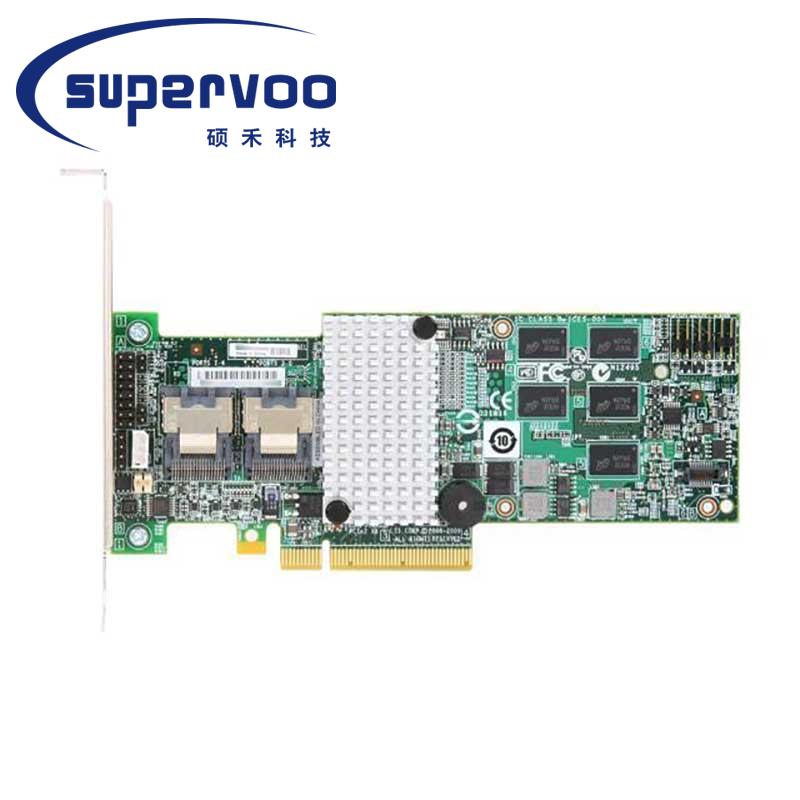

LSI MegaRAID SAS 9260-8i LSI00198 8-port internal 6Gb/s PCIe SATA SAS RAID 0,1,5,6,10,50,60 RAID controller

  • Product #:9260-8i
  • Ordering # : LSI00198
  • MPN : L5-25121-28
  • Product description: LSI LSI00198 MegaRAID SAS 9260-8i 8-port internal 6Gb/s PCIe SATA SAS RAID 0,1,5,6,10,50,60 RAID controller
  • INQUIRY

Features

  • Eight internal SATA+SAS ports
  • Two mini-SAS SFF-8087 x4 connectors
  • 6Gb/s throughput per port
  • LSISAS2108 RAID-on-Chip (ROC)
    o  800MHz PowerPC®
  • Low-profile MD2 form factor
  • x8 PCI Express 2.0 host interface
  • 512MB DDRII cache (800MHz)
  • Optional battery backup unit (direct attach)
  • Connect up to 32 SATA and/or SAS devices
  • RAID levels 0, 1, 5 and 6
  • RAID spans 10, 50 and 60
  • Auto-resume on rebuild
  • Auto-resume on reconstruction
  • Online Capacity Expansion (OCE)
  • Online RAID Level Migration (RLM)
  • SafeStore™ Encryption Services
    o  Instant secure erase
  • SSD support with SSD Guard™
  • Global and dedicated hot spare with revertible hot spare support
    o  Automatic rebuild
    o  Enclosure affinity
    o  Emergency SATA hot spare for SAS arrays
  • Single controller multipathing (failover)
  • I/O load balancing
  • Comprehensive RAID management suite

Benefits

  • Superior performance
    o Maximum reads: 2,875MB/s
    o Maximum writes: 1,850MB/s
  • PCI Express 2.0 provides faster signaling for high-bandwidth applications
  • Support for 3Gb/s and 6Gb/s SATA and SAS hard drives for maximum inside-the-box flexibility
  • SafeStore Encryption Services for more secure data protection
  • Low-profile MD2 form factor for space-limited 1U and 2U environments
