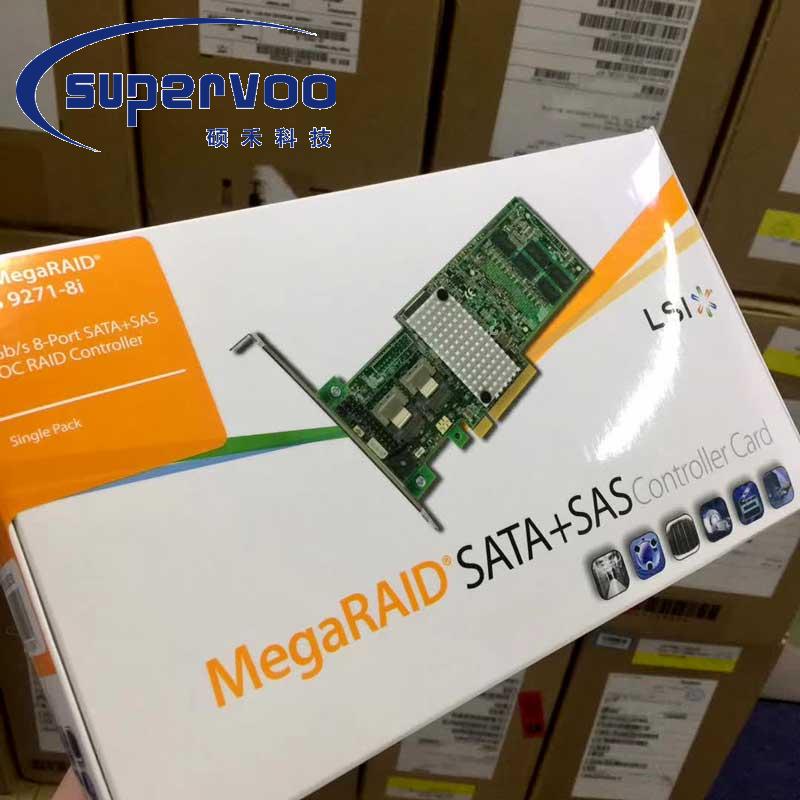

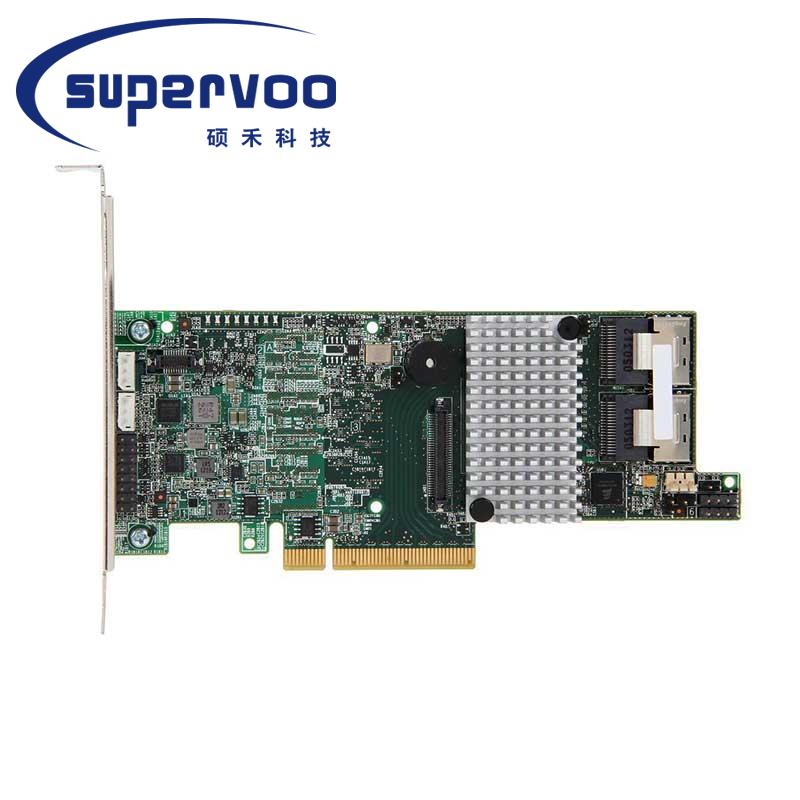

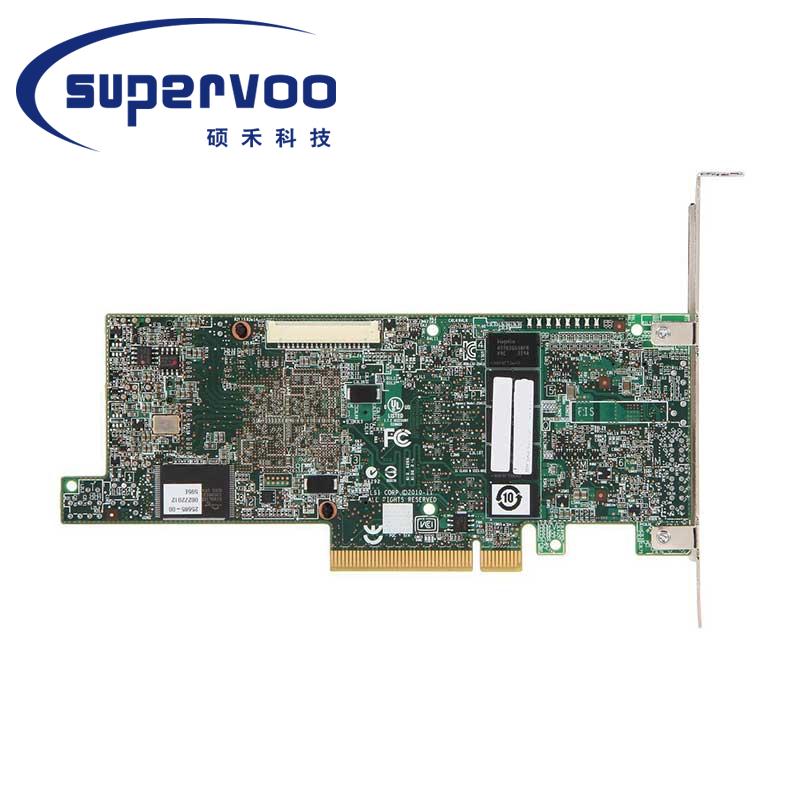

LSI 9271-8I LSI00330 8-port 6Gb/s PCI Express 3.0 SATA+SAS RAID Controller

LSI 9271-8I LSI00330 8-port 6Gb/s PCI Express 3.0 SATA+SAS RAID Controller

Product #：9271-8i
Ordering # : LSI00330
MPN : L5-25413-18
Product description: LSI 9271-8I LSI00330 8-port 6Gb/s PCI Express 3.0 SATA+SAS RAID Controller
INQUIRY

Specifications

Solution Provided	The eight-port MegaRAID SAS 9271-8i, built on dual-core 6Gb/s MegaRAID SAS technology, provides a powerful combination of intelligent performance, enterprise RAID data protection and proven interoperability with the latest PCI Express 3.0 server platforms.
Product Description	8-Port Int., 6Gb/s SATA+SAS, PCIe 3.0, 1GB DDRIII
Physical Dimensions	MD2 Low profile (6.6" X 2.536")
Internal Connectors	Two Mini-SAS SFF8087 internal connector (side mount)
Device Support	Up to 128 SAS and/or SATA devices
Host Bus Type	x8 lane PCI Express 3.0 compliant
Data Transfer Rates	Up to 6Gb/s per port
I/O Processor/SAS Controller	LSISAS2208 Dual-Core RAID on Chip (ROC)
Cache Memory	1 GB 1333MHz DDRIII SDRAM
Cache Protection	MegaRAID CacheVault flash cache protection (optional – LSICVM01 / LSI00297) MegaRAID LSIiBBU09 (optional – LSIiBBU09 / LSI00279)
Key RAID Data Protection Features	MegaRAID Management Suite RAID levels 0, 1, 5 and 6 RAID spans 10, 50 and 60 Online Capacity Expansion (OCE) Online RAID Level Migration (RLM) Auto resume after loss of system power during arrays array rebuild or reconstruction (RLM) Single controller Multipathing (failover) Load Balancing Configurable stripe size up to 1MB Fast initialization for quick array setup Check Consistency for background data integrity SSD Support with SSD Guard™ Patrol read for media scanning and repairing 64 logical drive support Up to 64TB LUN support DDF compliant Configuration on Disk (COD) S.M.A.R.T support Global and dedicated Hot Spare with Revertible Hot Spare support Automatic rebuild Enclosure affinity Emergency SATA hot spare for SAS arrays Enclosure management SES (inband) SGPIO (sideband)
Operating Temperature	Maximum ambient: Controller Card: 60°C, with optional LSIiBBU09: 55°C
Operating Voltage	+3.3V, +12V
MTBF (Calculated)	1,031,514hours
Hardware Warranty	3 years, free advanced technical support, advanced replacement option
Regulatory Certifications	EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
RAID Management	MegaRAID Management Suite MegaRAID Storage Manager MegaCLI (command-line interface) WebBIOS
Optional SSD Optimization	MegaRAID CacheCade Pro 2.0 Software leverages SSDs in front of HDD volumes to create high-capacity, high-performance controller cache poolsMegaRAID Fast Path Software provides high-performance I/O acceleration for SSD arrays connected to 6Gb/s MegaRAID SATA+SAS controllers
OS Support	Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more.

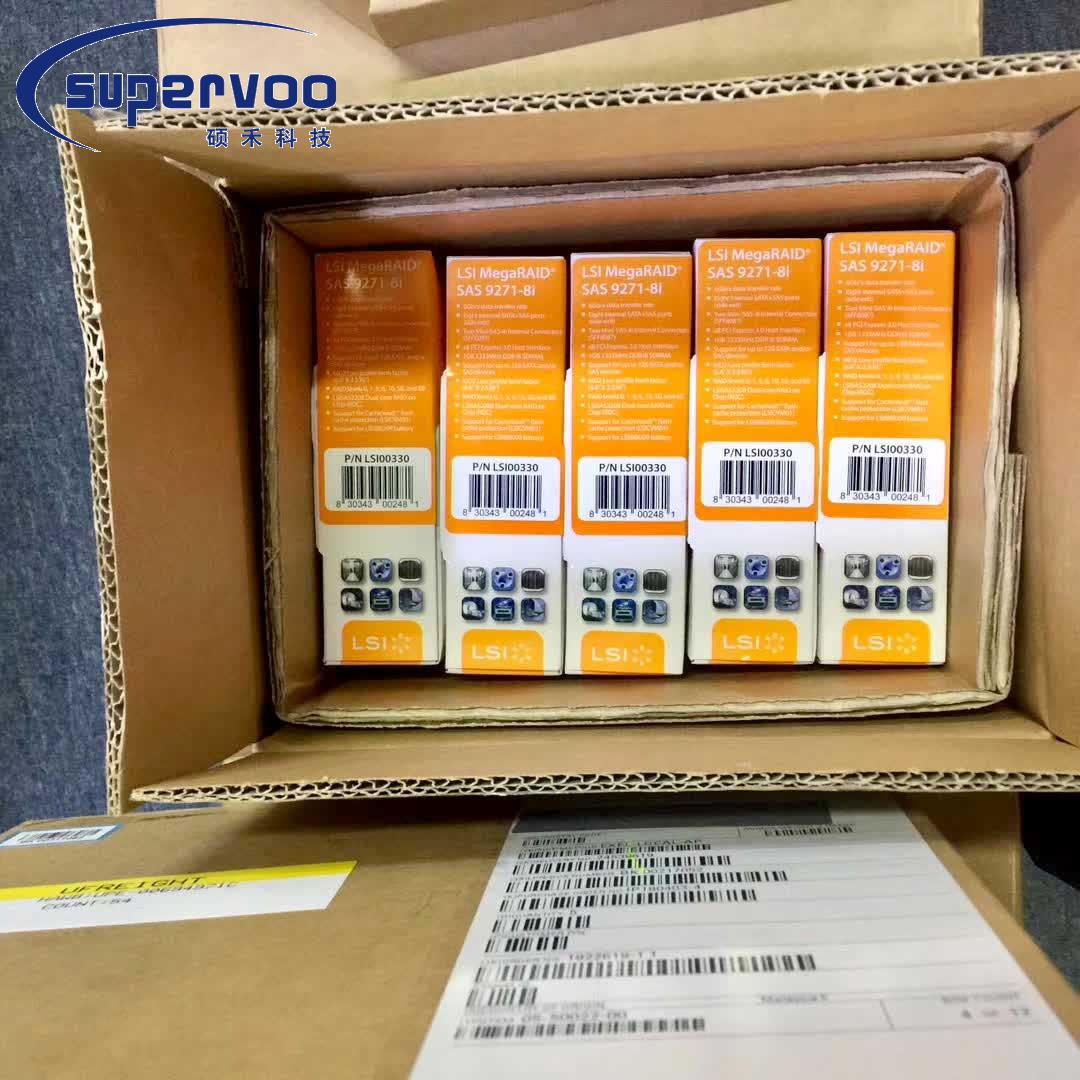

Ordering Information	LSI00330 (Single Pack)
