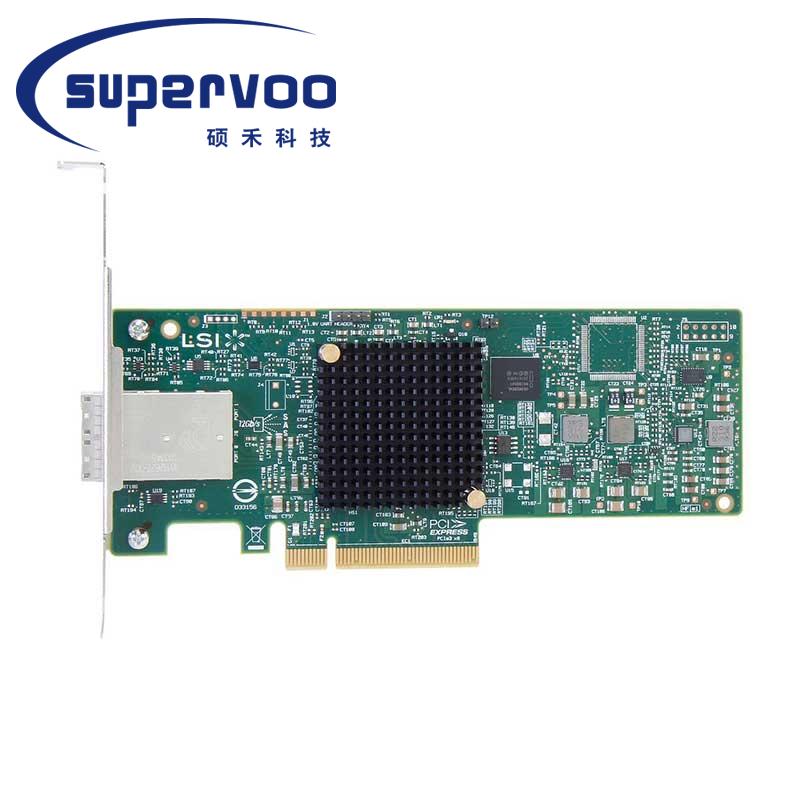

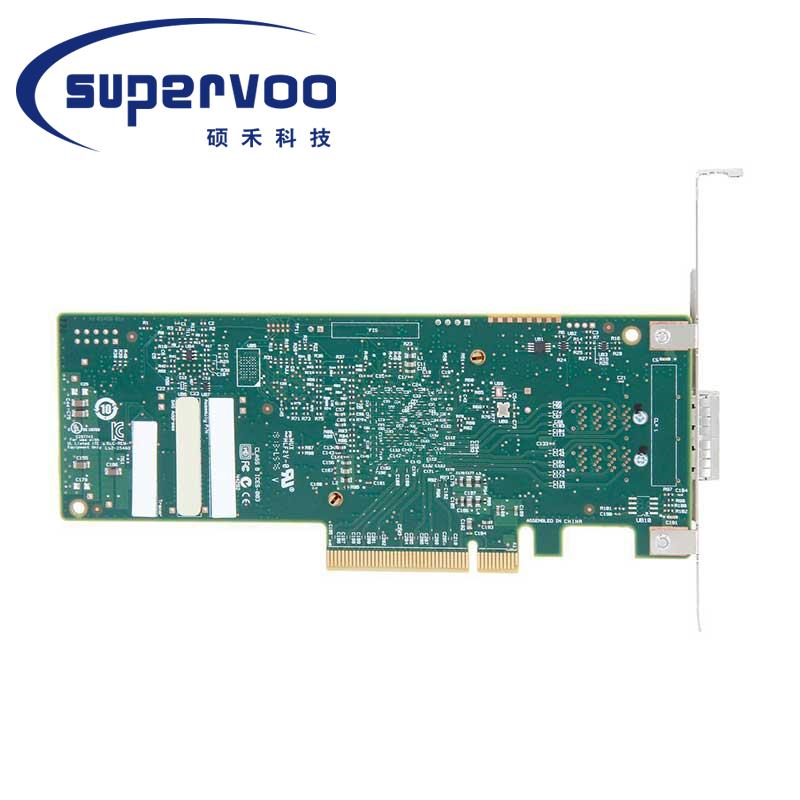

LSI 9300-8e LSI00343 8-Port External PCI-Express 3.0 SATA / SAS 12Gb/s HBA

Features

· Eight ports of 12Gb/s SAS + SATA ports

· Eight lanes of PCI Express 3.0

· Low-profile form factor

· Mini-SAS HD connectors

· LSI SAS 3008 12Gb/s SAS+SATA controller

· Supports SSDs, HDDs, and tape drives

· Provides connectivity in a low-profile form factor

· 8 lanes of PCI Express 3.0 provides fast signaling for high bandwidth applications

· High performance with 12Gb/s SAS data transfer rates

Technical Specs

Solution Provided High performance for high-end servers connecting to large scale storage enclosures and for internal drive connectivity in 1U/2U servers and workstations.

In the Box 9300-8e HBA & documentation CD

IO Controller LSISAS3008 Fusion MPT 2.5

Port Count 8 port, external

Connectors Mini SAS HD SFF8644 Two (x4)

Storage Connectivity Data Transfer Rates 12Gb/s SAS 3.0 Compliant

SAS Bandwidth Half Duplex (x4 wide bus) 4800 MB/s

Port Configurations 8 ea, x1 ports (individual drives) 2 ea, x4 wide port

Host Bus x8 lane, PCIe 3.0

PCI Data Burst Transfer Rates Half Duplex x8, PCIe 3.0, 8000 MB/s

Form Factor Low Profile

Physical Dimensions 2.6" x 6.6"

Brackets Full Height and low profile vented

Cable Support Passive Copper, Active Optical

Operating Voltage +12V +/-8%; 3.3V +/-9%

PCI Power (Nominal) 14.5W

Device Support 1024 Non-RAID devices

Environmental Operating: 0°C to 55°C Storage: -45°C to 105°C, 5 to 90% non-condensing, Airflow: 200 LFM

MTBF >2,800,000 hours

Regulatory Certifications EMC: Class B-US (CFR 47, P15B); Canada (ICES-00); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE

OS Support Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware™, FreeBSD®, VMware® and more.   * Visit the LSI download Center for the most complete list of supported operating systems: www.lsi.com/channel/support

Warranty 3 years, free advanced technical support, advanced replacement option
