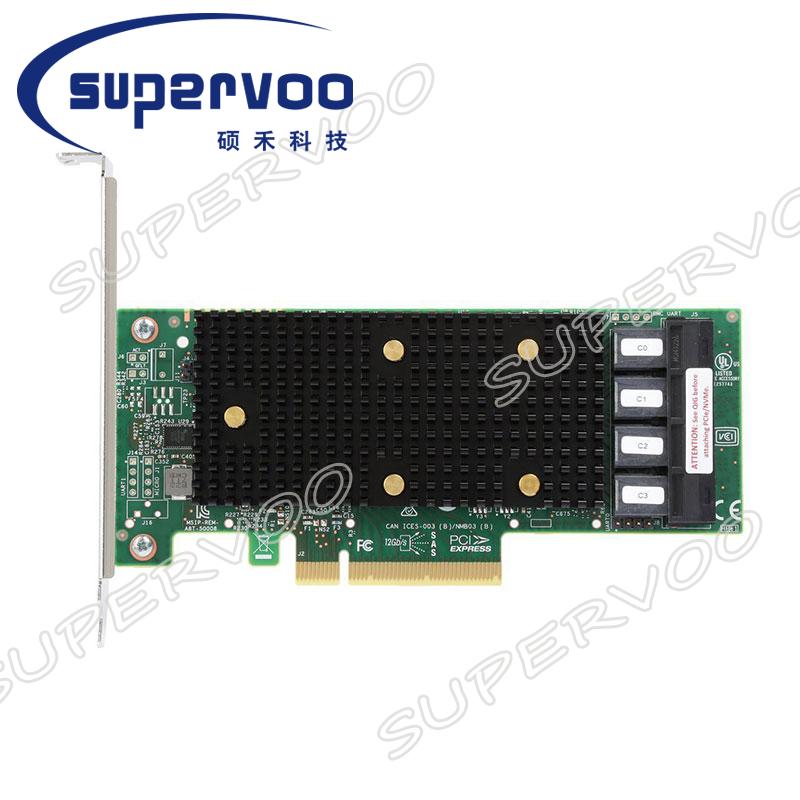

9400-16i SGL 05-50008-00 16-Int Ports 12Gb/s SAS/SATA/NVMe Tri-Mode PCle3.1 HBA
- Product description: 9400-16i SGL 05-50008-00 16-Int Ports 12Gb/s SAS/SATA/NVMe Tri-Mode PCle3.1 HBA
Specifications
| Host Bus Type | x8 lane PCI Express 3.1 |
| Physical Dimensions | Low profile 6.127” x 2.712” |
| Devices Supported | SAS/SATA: 1024; NVMe: 24 |
| Internal Connectors | 4 Mini-SAS HD x4 SFF-8643 |
| Internal Ports | 16 |
| Operating Temperature | 10° to 55° C |
| Operating Voltage (V) | +12V +/-8%, 3.3V +/-9% |
| OS Support | Microsoft Windows, Linux, VMware. |
| PCI Power | Typical: 11.95W |
| Cable Support | Passive Copper |
| I/O Controller | SAS3416 |
| MTBF | > 4,500,000 hours at 40° C |
| Operating Humidity | 20% to 80% Non-condensing |
| Brackets | Full height and low profile |
| Regulatory Certifications | Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
| Warranty | 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
| Data Transfer Rates | 12 Gb/s SAS-3 and 8 GT/s PCIe Gen 3 (NVMe) Compliant |
