LSI00291 BBU-BRACKET-05 LSI Remote Mounting Bracket

Product #：BBU-BRACKET-05
Ordering # : LSI00291
Product description: LSI00291 BBU-BRACKET-05 Remote Mounting Bracket for LSIiBBU06/07/08/09 and CacheVault Power Modules
INQUIRY

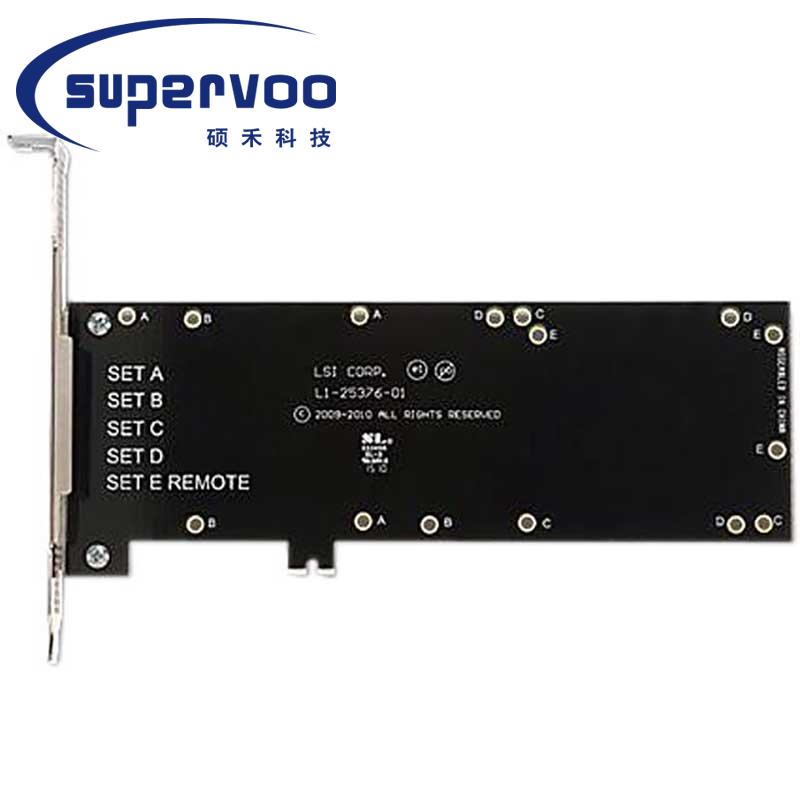

The new BBU-BRACKET-05 is a remote mounting board that allows customers to remotely mount their battery backup or CacheVault Power Module (CVPM) in an adjacent server PCI slot. The BBU-BRACKET-05 allows one or two BBUs or CVPMs to be attached at a time and comes with a full-height bracket installed, while an optional low-profile bracket is included as part of the kit. Both brackets are ‘vented’ to allow for maximum cooling air flow in the vicinity of the battery.

BBU-BRACKET-05 is a remote mounting board that allows customers to remotely mount their battery backup or CacheVault Power Module (CVPM) in an adjacent server PCI slot.

Compatible Products :
LSIiBBU06 (Requires LSI00260)
LSIiBBU07 (Requires LSI00260)
LSIiBBU08 (Requires LSI00260 when using 9260-4i/8i controllers)
LSIiBBU09
All LSI CacheVault Power Modules

Specifications
Solution Provided : Remote Mounting Bracket for LSI BBUs and CacheVault Power Modules
Packaging Configuration : bulk
Weight (lbs) : 1 lbs / 0.45kg
Product Dimensions ; 6" x 6" x 2" / 15.2 x 15.2 x 5 cm
Warranty 3 Years
In the Box BBU-BRACKET-05 with full height bracket installed, LP bracket
