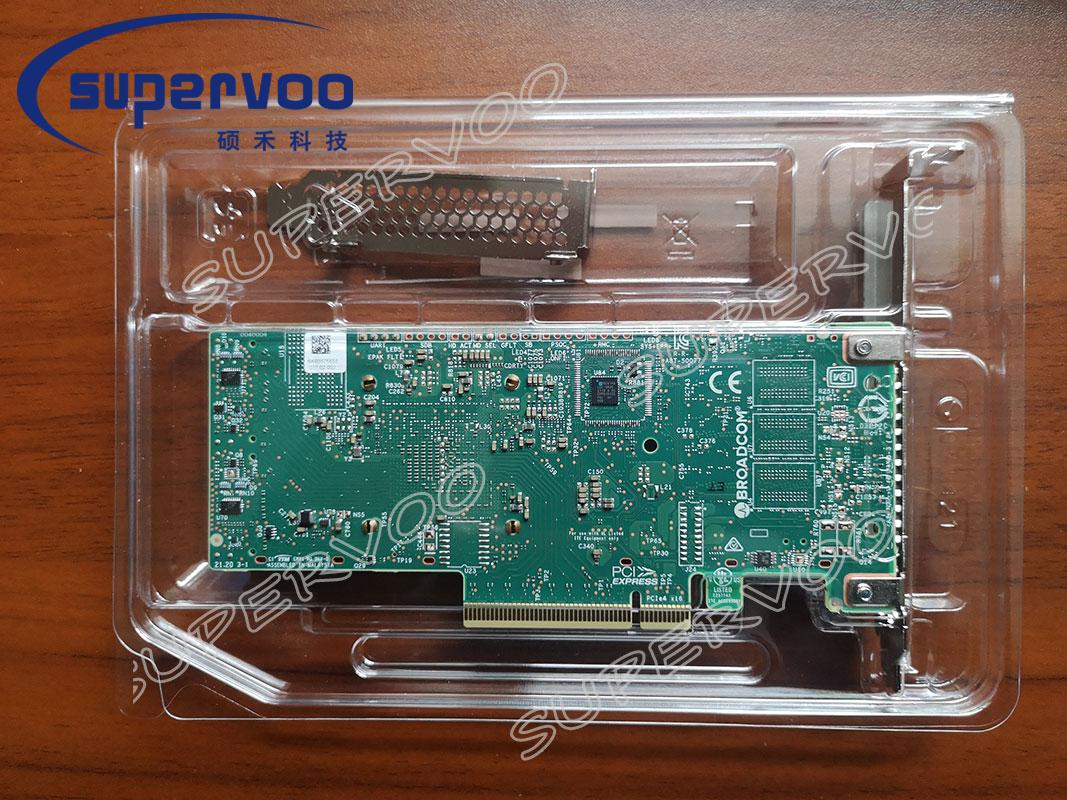

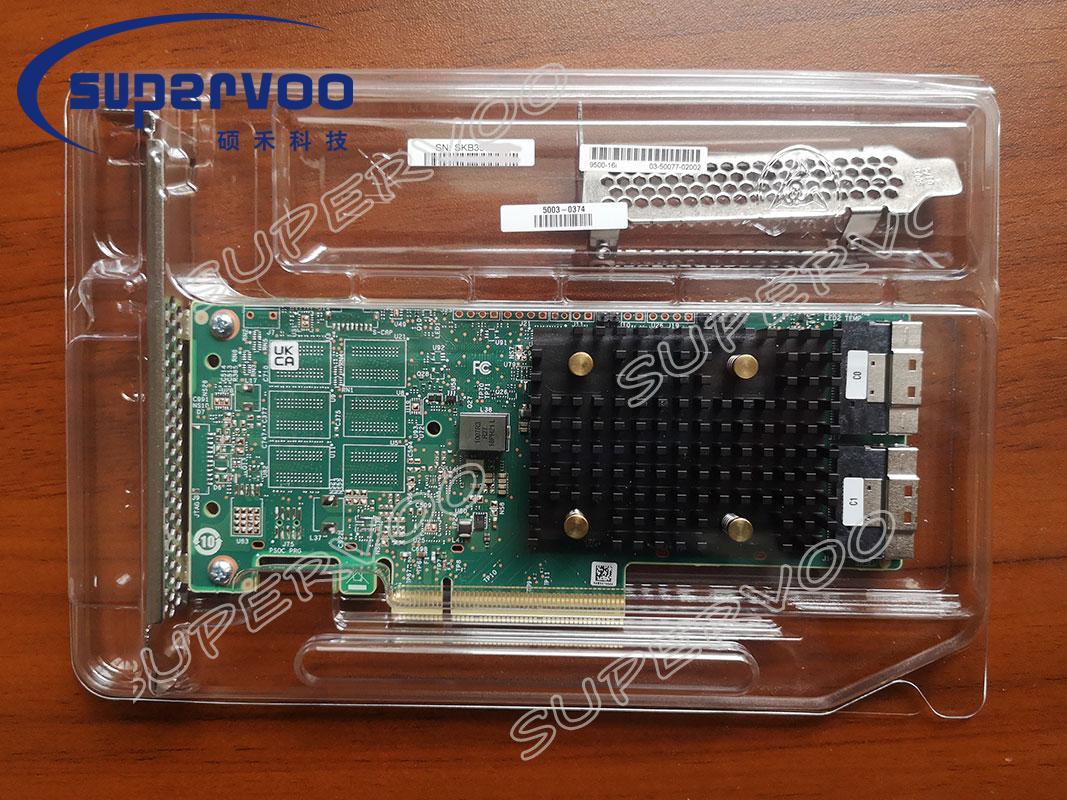

9500-16i Broadcom 05-50077-03 12Gb/s 16-Ports (2*SFF-8654) PCIe x8 Gen 4.0 Tri-Mode SAS HBA
- Brand :Broadcom
- Product：9500-16I
- MPN : 05-50077-03
- MPN : 05-50134-00 (new)
- Product description: 9500-16i Broadcom 05-50077-02 12Gb/s 16-Ports (2*SFF-8654) PCIe x8 Gen 4.0 Tri-Mode SAS HBA
| Product | Manufacturer Part # | What's in the Box |
|---|---|---|
| HBA 9500-16i | 05-50134-00 | 9500-16i HBA, Low Profile Bracket, FH (attached) |
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Distributor Inventory | No |
| Brackets | Full height and low profile |
| Devices Supported | SAS/SATA: 1024, NVMe: 32 |
| Generation | 12 Gb/s |
| Host Bus Type | x8 lane PCI Express 4.0 |
| Internal Connectors | 2 x8 SFF-8654 (SlimSAS) |
| Internal Ports | 16 |
| I/O Controller | SAS3816 |
| Management Software | LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
| MTBF | > 5,000,000 hours at 40° C |
| Operating Humidity | 20% to 80% Non-condensing |
| Operating Temperature°C | 0°C to 55°C |
| OS Support | Microsoft Windows, VMware vSphere, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD |
| Physical Dimensions | 155.52 (+/-0.13) mm x 68.77 (+/-0.13) mm |
| Regulatory Certifications | Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
| Typical Power | 8.9W |
| Warranty | 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
| What's in the box | 9500-16i HBA, Low Profile Bracket, Bracket, FH (attached) |
