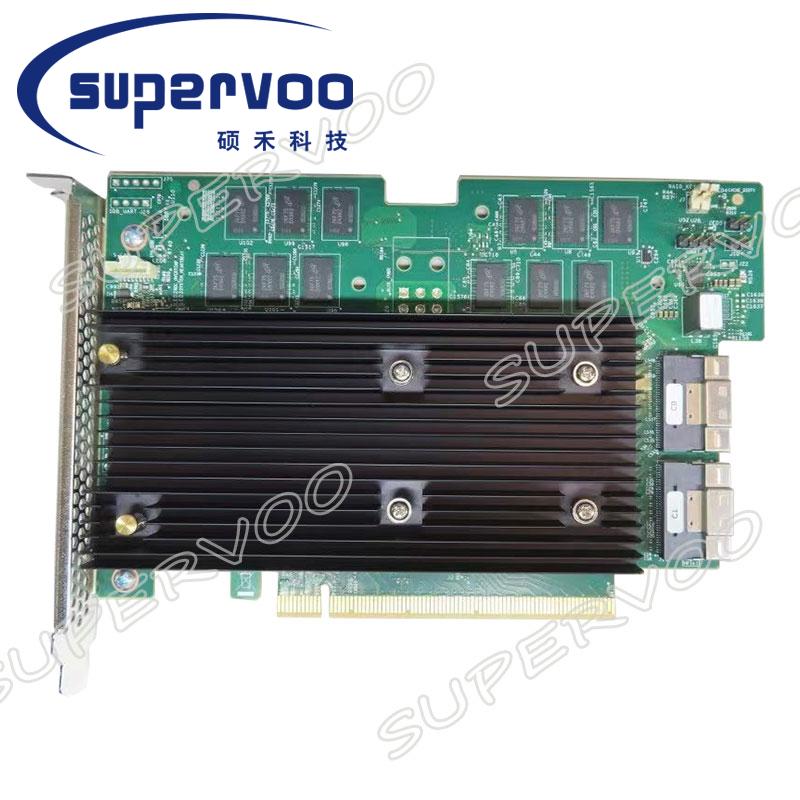

9670W-16i 05-50113-00 24G 16ports(2xSFF-8654) 8Gb Cache PCIe X16 4.0 FH RIAD Controller
- Product #：9670W-16I
- Ordering # : 05-50113-00
- Product description: The MegaRAID 9670W-16i based on the SAS4116W RAID-on-Chip (RoC) delivers more than 4x increase in RAID5 Random Write Ops and twice the bandwidth over the previous generation. The 9670W-16i’s advanced
| Product | Manufacturer Part # | What's in the Box |
|---|---|---|
| MegaRAID 9670W-16i |
05-50113-00 |
MegaRAID 9670W-16i, FH (attached), LP bracket |
| CVPM05 | 05-50039-00 | CacheVault Power Module (CVPM05) with 24" remote extender |
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Distributor Inventory | No |
| Cache Memory | 8GB |
| Cache Protection | CacheVault CVPM05 |
| Connectors | 2x8 SFF-8654 |
| Data Transfer Rates | 22.5, 12 and 6Gb/s SAS and 6Gb/s SATA |
| Devices Supported | SAS/SATA: 240, NVMe: 32 |
| Generation | 24G |
| Internal Ports | 16 |
| Management Software | LSI Storage Authority (LSA), StorCLI2 (Command-Line Interface), HII (UEFI Human Interface Infrastructure |
| MTBF | >3,000,000 hours at 40° C |
| Operating Humidity | 5% to 90% Non-condensing |
| Operating Temperature°C | 0°C to 55°C |
| OS Support | Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, CentOS Linux, Debian Linux, Oracle Enterprise Linux, FreeBSD |
| Physical Dimensions | 167.52 (+/-0.13) mm x 111.15 (+/-0.13) mm |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| Regulatory Certifications | Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020); RoHS, WEEE |
| Typical Power | 28W |
| Warranty | 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
